An innovative and versatile system that delivers stunning contemporary aesthetics.

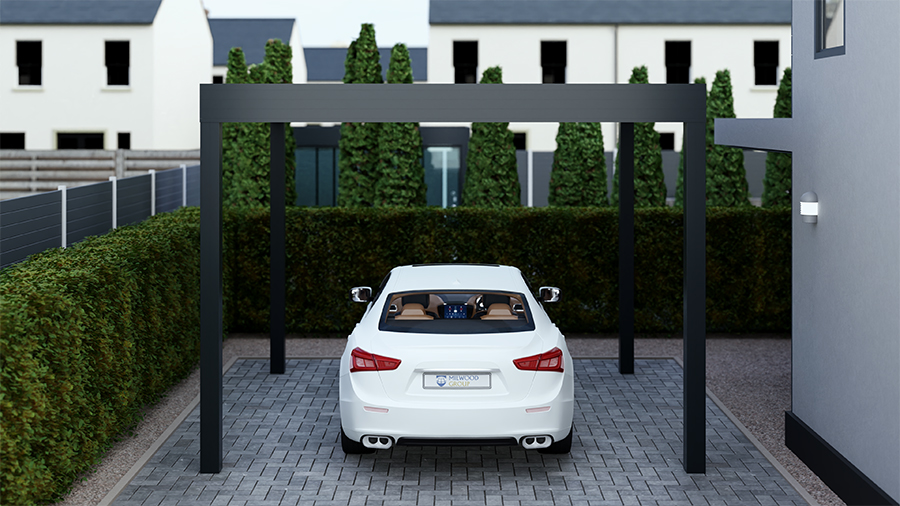

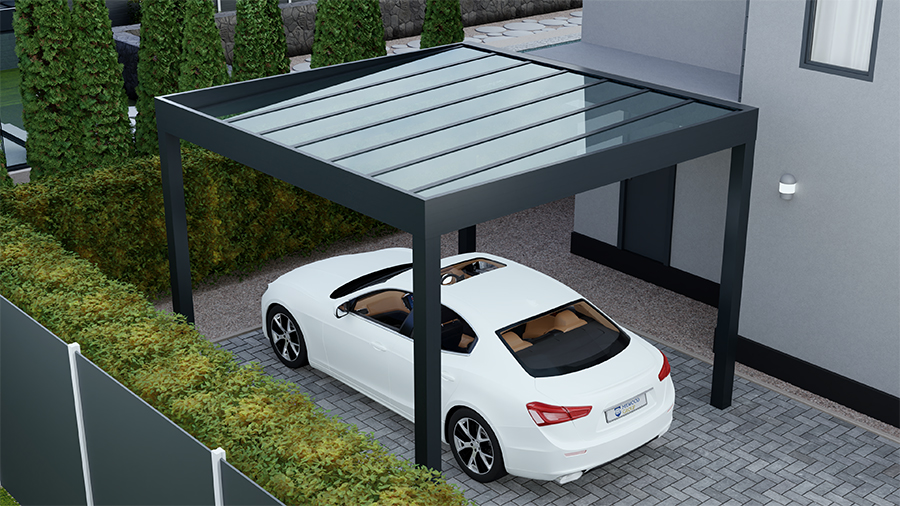

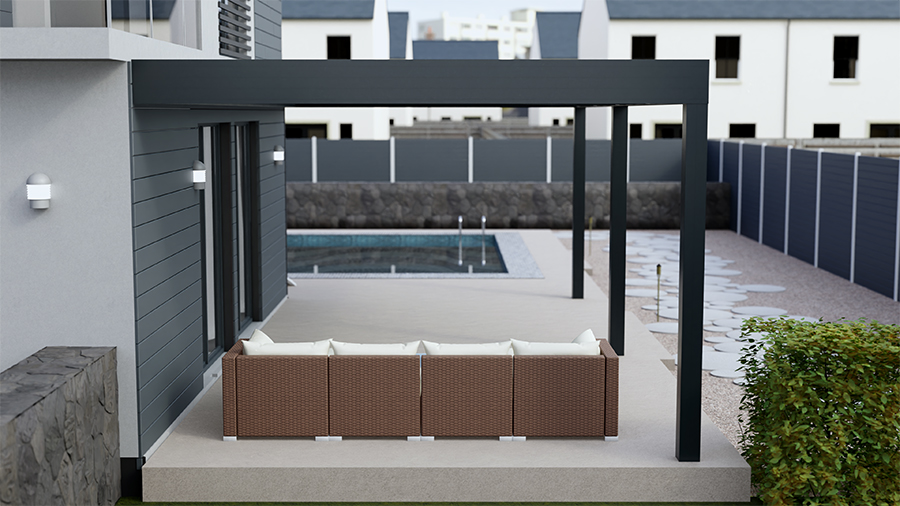

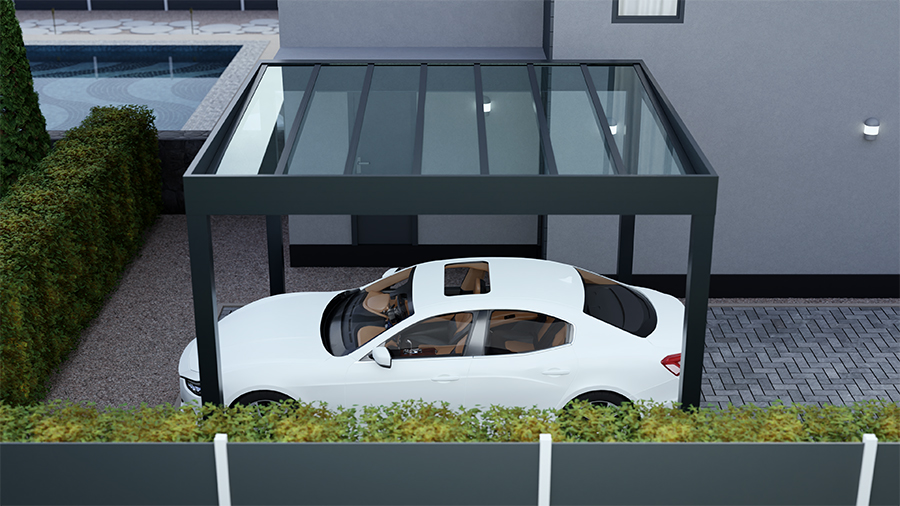

Ideal for use as a wall-mounted or free-standing veranda, garden room, or carport.

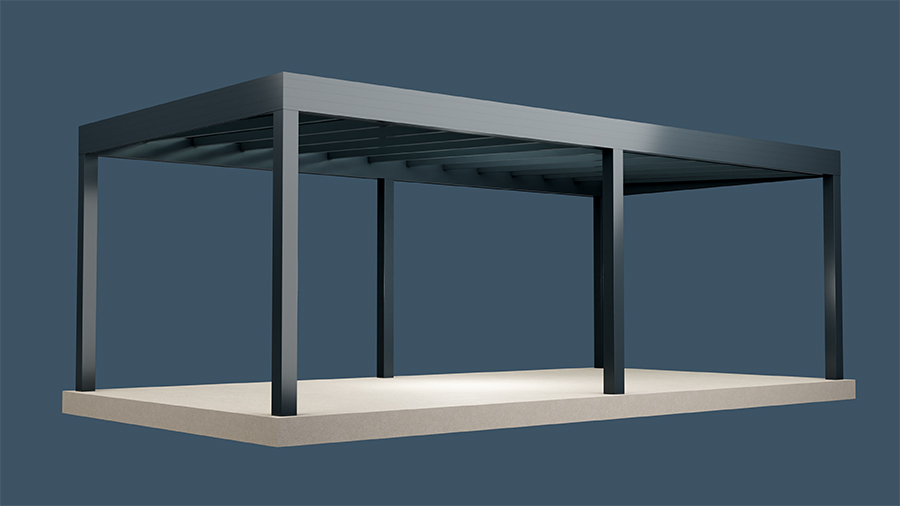

The Simplicity Free Mono system has been created with contemporary design, flawless functionality, and ease-of-installation in mind. Named for its free-standing option, the Sim Free delivers maximum versatility to homeowners.
This truly modern structure features a quick-fit, top-fix/snap-down glazing solution to speed up the installation of the 6mm toughened glass
With a maximum projection of 4 metres and any desired length achievable, the Simplicity Free Mono is perfect for any veranda patio or carport area.
Constructed from aluminium and designed with the rigours of the UK weather in mind, the Simplicity Free Mono has a sturdy 8 millimetre galvanised steel profile corner connector plate to guarantee firm installation. Engineered to last, the Sim Free has an expected lifespan of 50 years and comes with a 10-year guarantee.

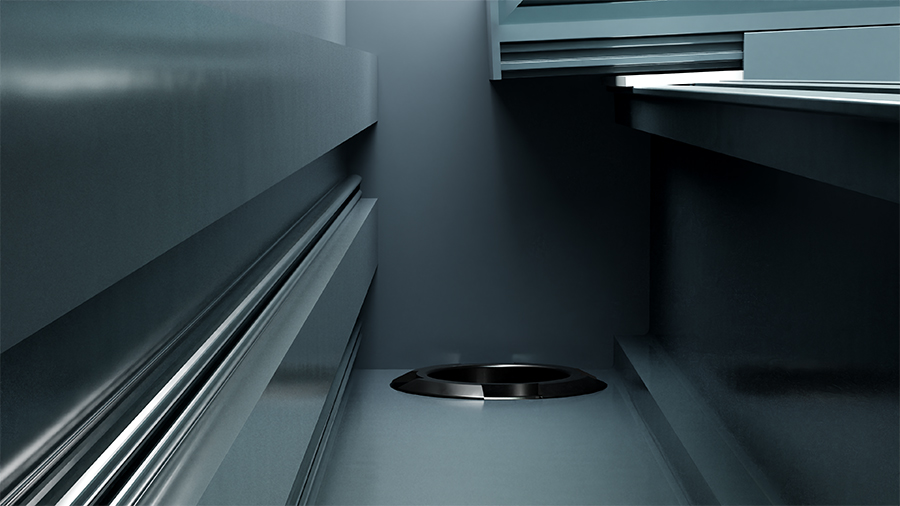

Drainage is a key factor for any veranda, canopy, or carport system. The Simplicity Free Mono system incorporates concealed drainage via internal gutters and downpipes. Simple to install using standard UPVC downpipes and spigots, water can either be evacuated at the ground surface or connected to underground drainage pipes.

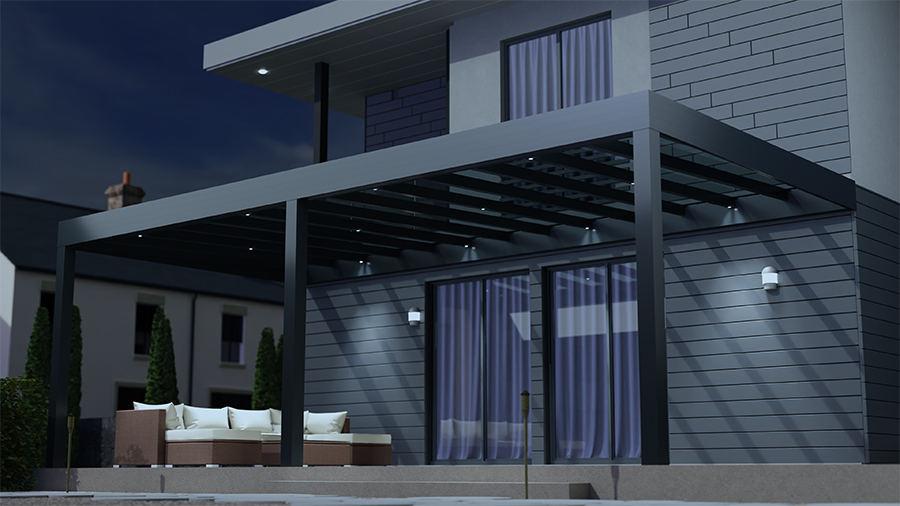

Lighting is another important consideration to allow comfortable use day or night. The Simplicity Free Mono has the option of incorporated Somfy Remote controlled LED spot-lighting in the roof bars, providing homeowners with the choice of RGB, warm, or pure white light to suit the mood.
To find out more, call the Milwood Group team today on 0333 305 5272.
Add heating and lighting to your Simplicity Free Mono for the complete finish.
Why Sell The Simplicity Free Mono System To Your Customers?
The Simplicity Free Mono is a Highly Versatile System

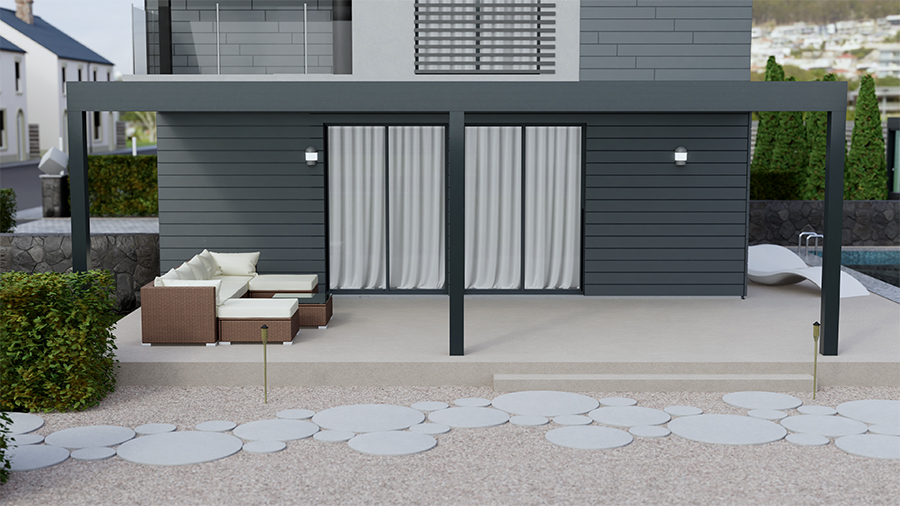

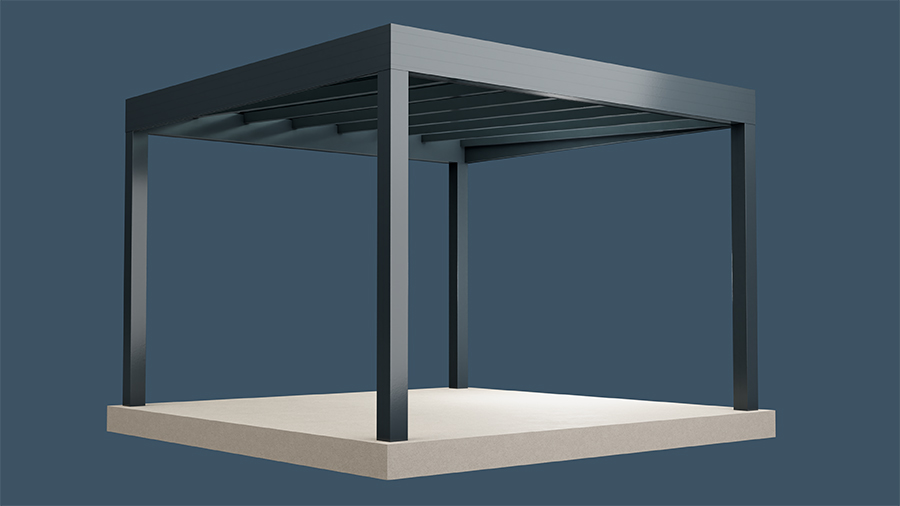

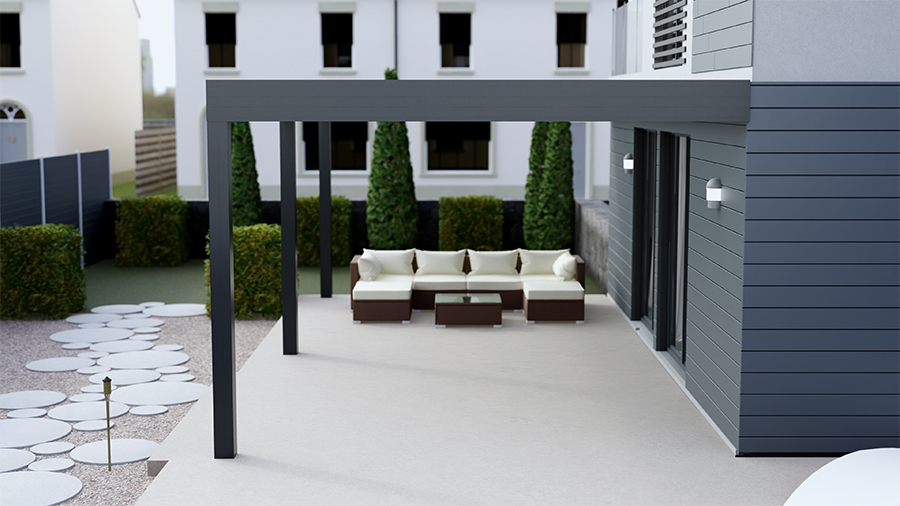

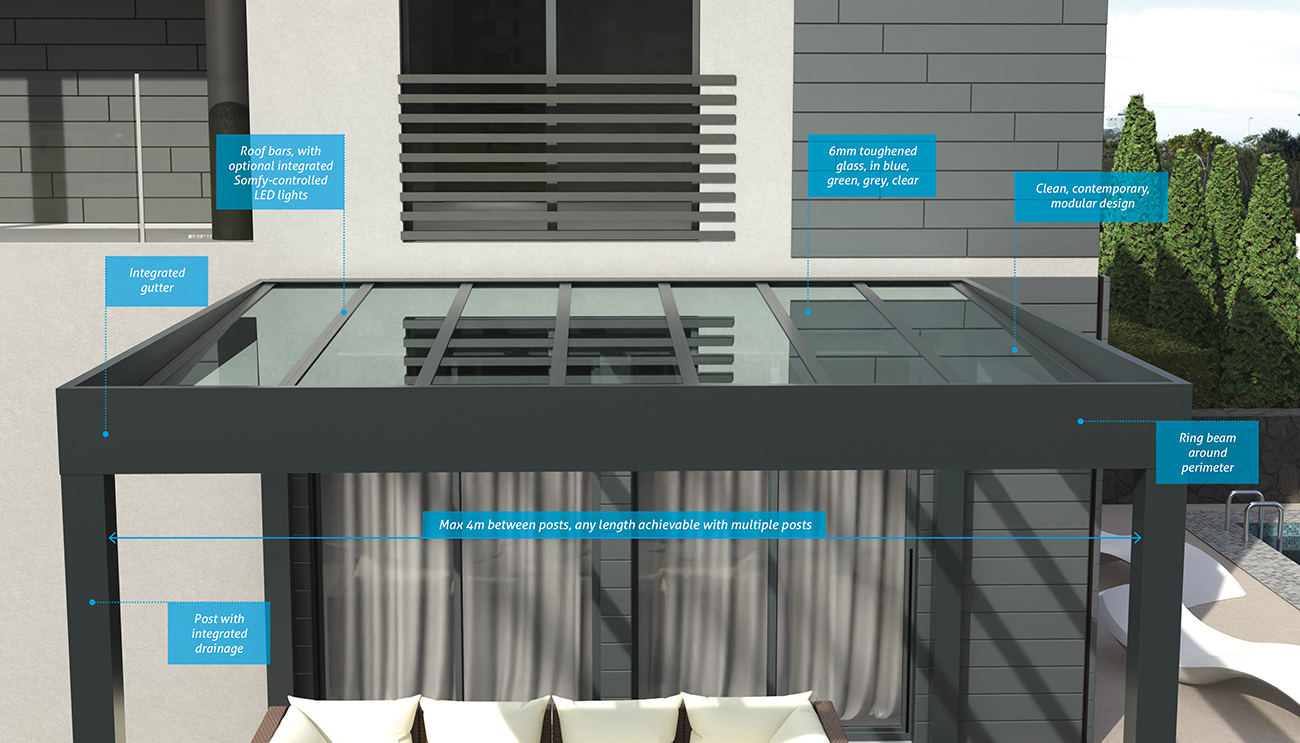

- Wall Mounted or Free Standing Options – The Simplicity Free Mono is able to be installed fixed to the house or as an independent, free-standing structure
- Clean Contemporary Cubic Design – We have carefully designed the Simplicity Free Mono to deliver an absolutely stunning visual impact
- Quick-Fit, top-fix/snap-down glazing system – The glass panels are quickly and easily fixed into place with a quick-fit system

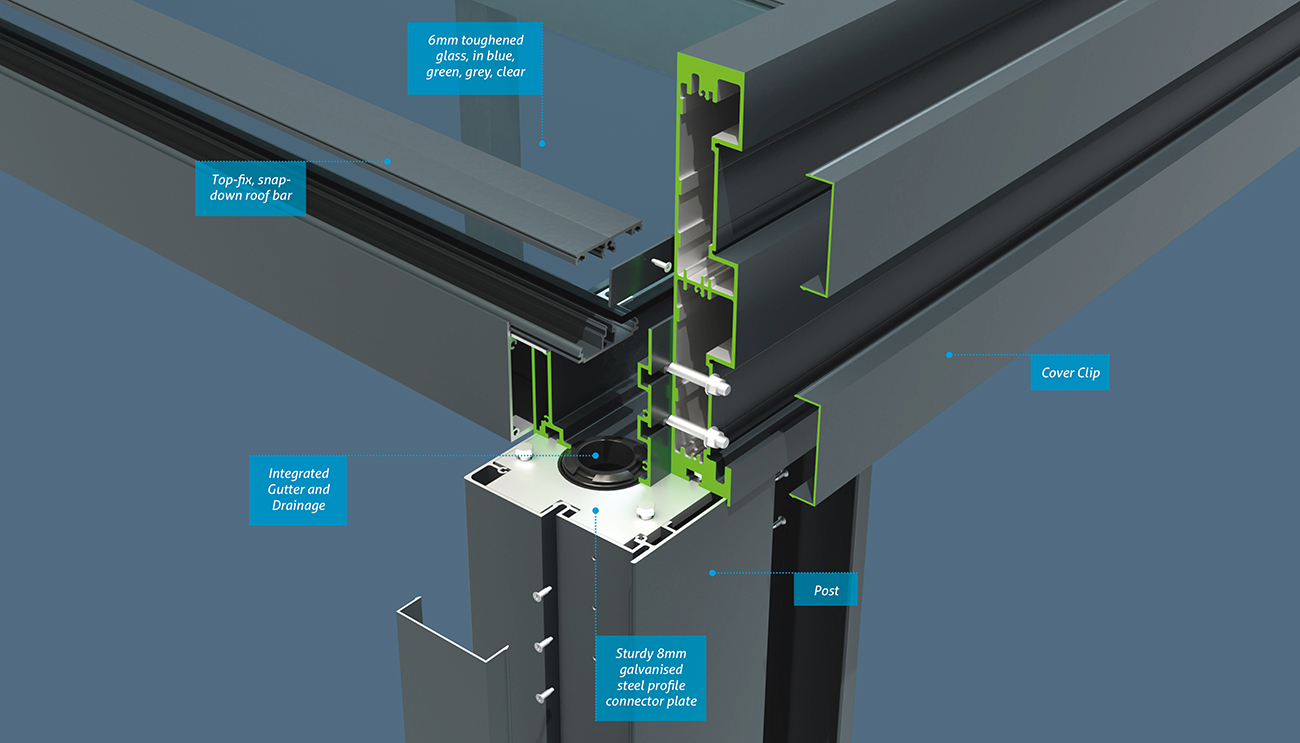

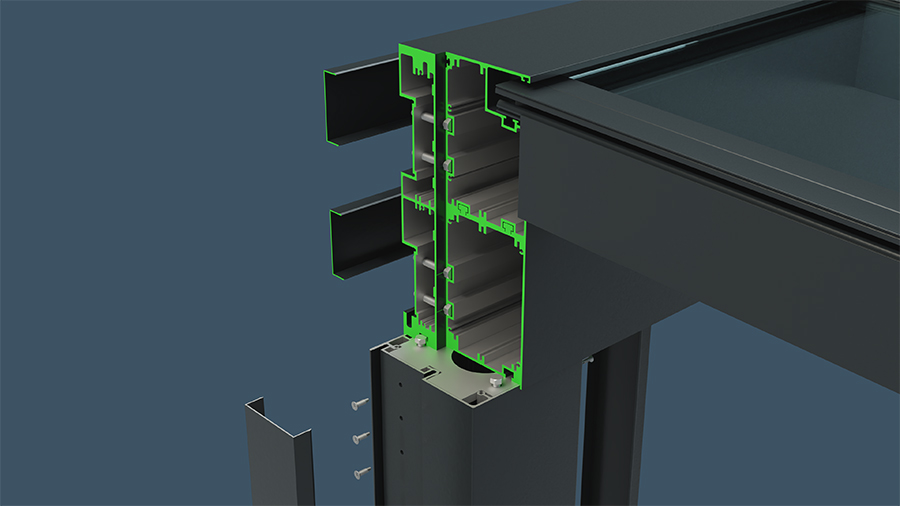

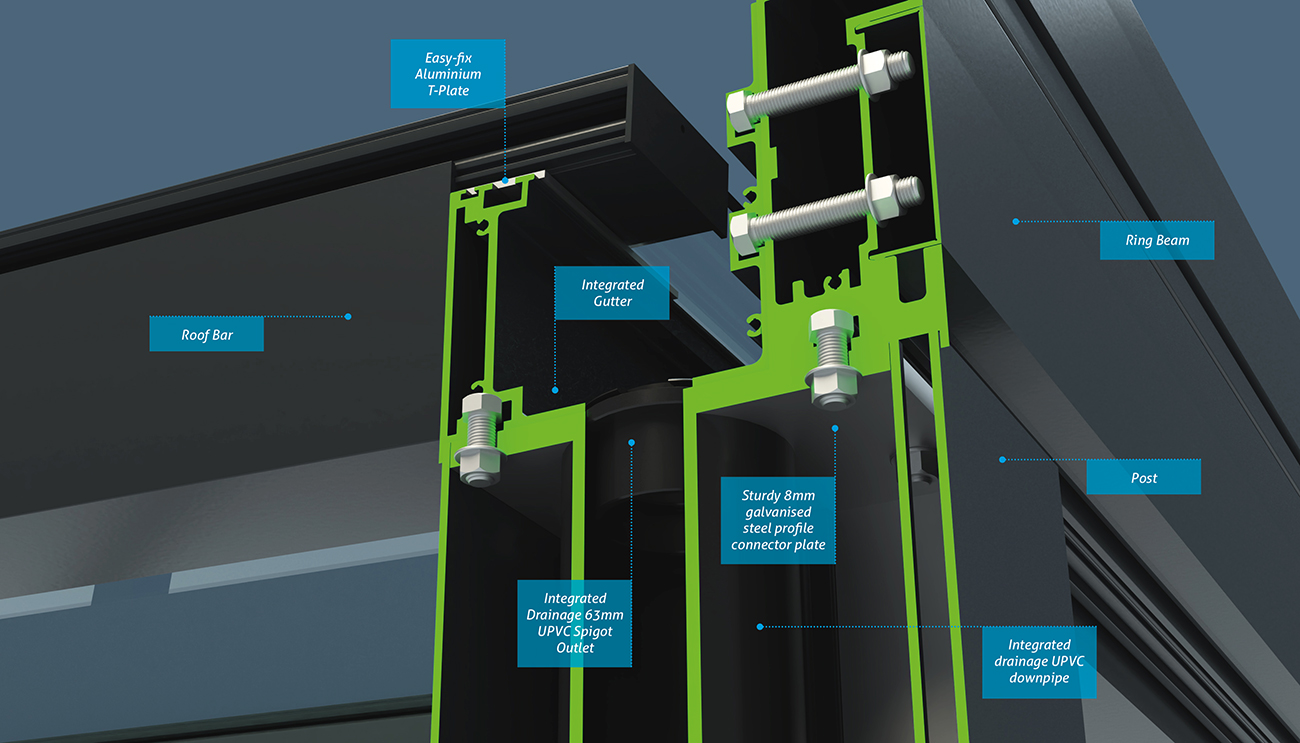

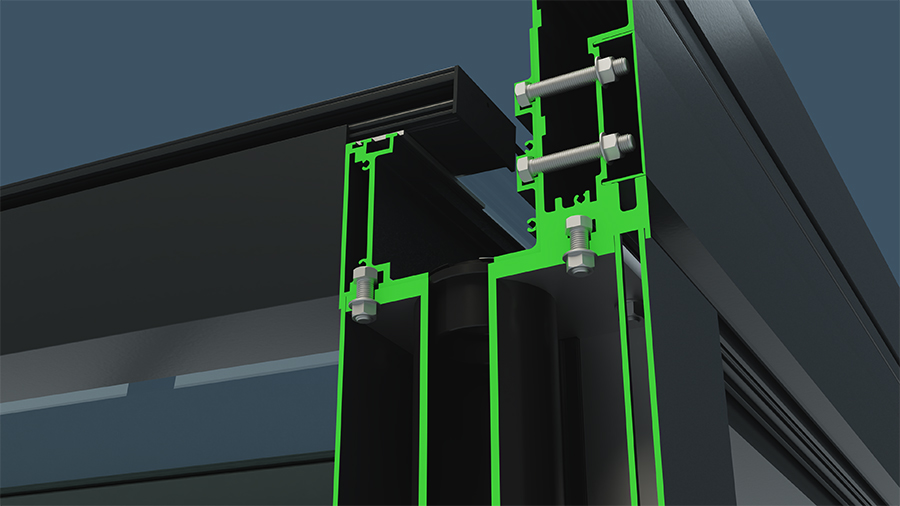

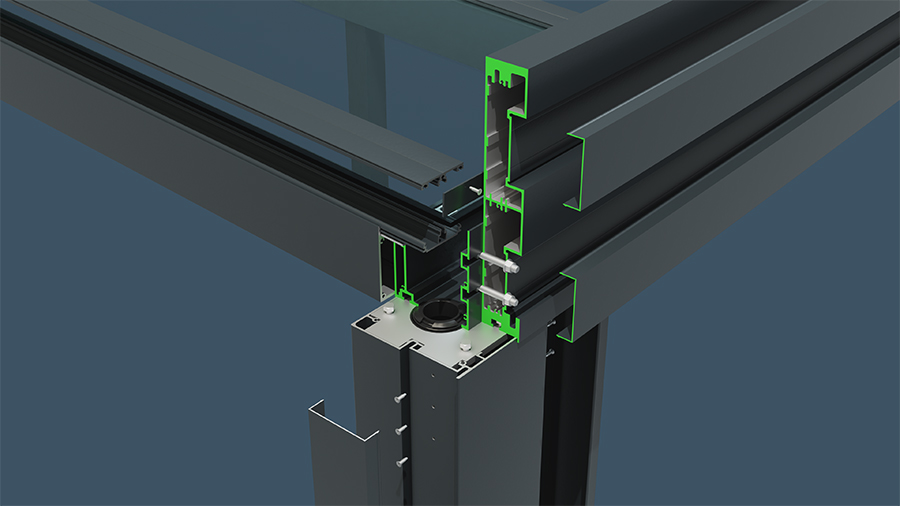

- Sturdy 8mm galvanised steel profile connector plate – Internal corner connections are made with strong steel plate for firm installation
- Integrated gutters and downpipes – Water management is effortlessly achieved with the Sim Free, with rainwater evacuated via hidden, internal drainage
- Roof bars with optional integrated Somfy-controlled LED lights – Lighting is available, with LED spotlights in the roof bars providing RGB, warm, or white light
- 6mm toughened glass – Available in clear or coloured options, the roof glass panels are highly strong and provide shade and shelter

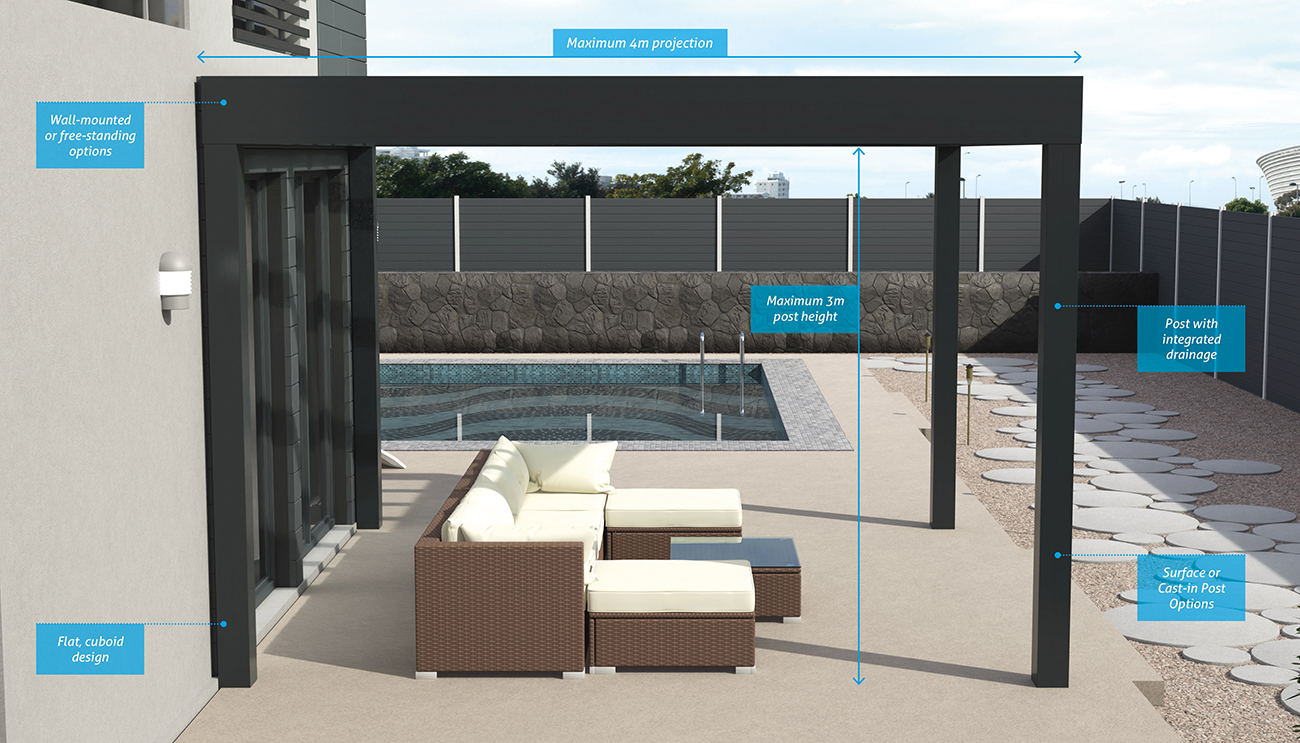

- 4 metre maximum projection, 4 metre maximum between posts, any length achievable – Highly versatile installation options, able to provide a large footprint for the largest patios
- 3m Maximum post height – The Sim Free can provide a very high clearance, ideal for large properties or commercial and public spaces

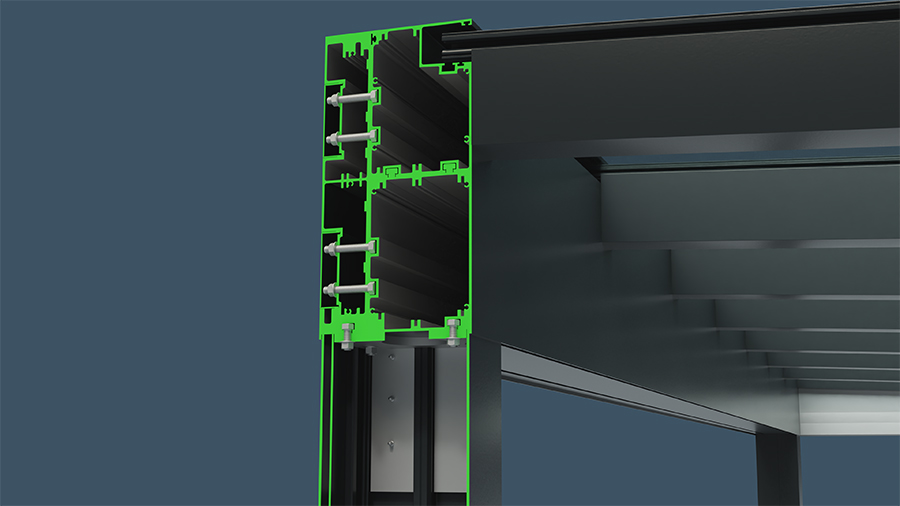

- Chunky 30 centimetre Ring Beam around perimeter – Very strong, visually sleek and modern with hidden fixings and gutter, the Sim Free Ring Beam is a contemporary and practical solution
- Surface mounted or Cast-in Post Options – Versatile fixing to the ground, with the option to mount beneath ground or securely mount to the floor surface if penetration is not feasible

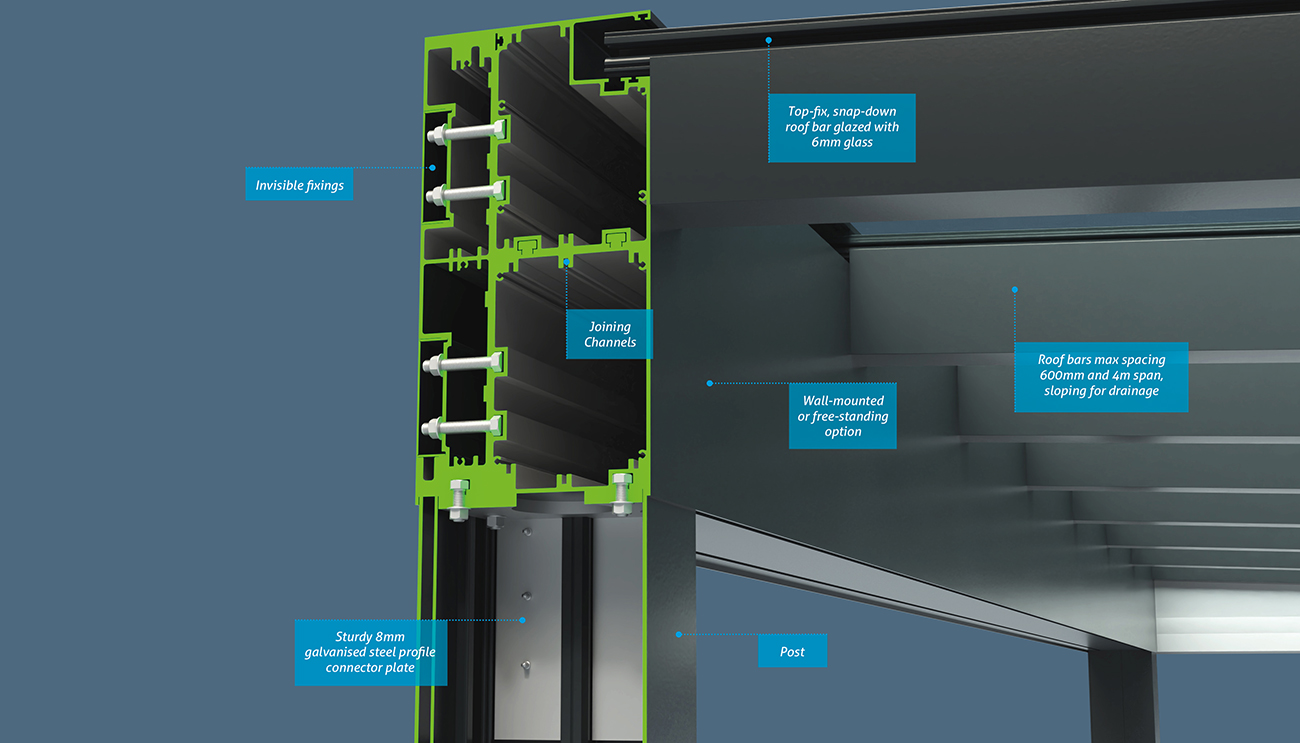

- Concealed fixings throughout – The Sim Free has clip-in covers to ensure that no fixings are visible, to maintain the aesthetic impact of the installed system
Key Features of the Simplicity Free Mono
Available Upgrades
Infrared Heaters
Wall Mounted Heaters and the option to have freestanding, can be added to create a gentle, ambient glow of heat underneath the veranda.
With a modern look and a choice of 3 popular colours; black, silver and rose gold, to suit the heating and appearance requirements of the end user.
Find out more about Infrared Wall Mounted Heaters
Integrated Lighting
Integrated lighting can be added to the underside of the main bars and is hidden within the frame for a seamless appearance.
The lighting features LED technology, making them economical to run, durable and not too bright or obtrusive.
Find out more about Integrated Lighting
Glass Room

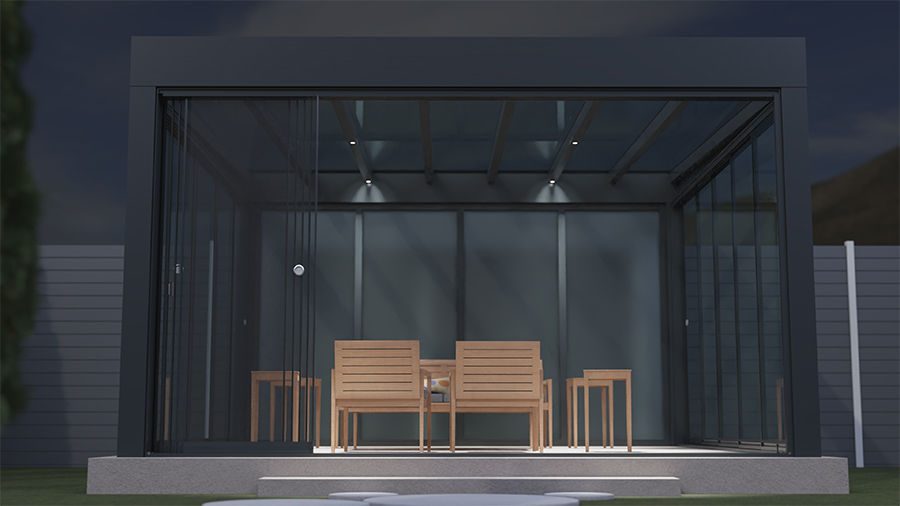

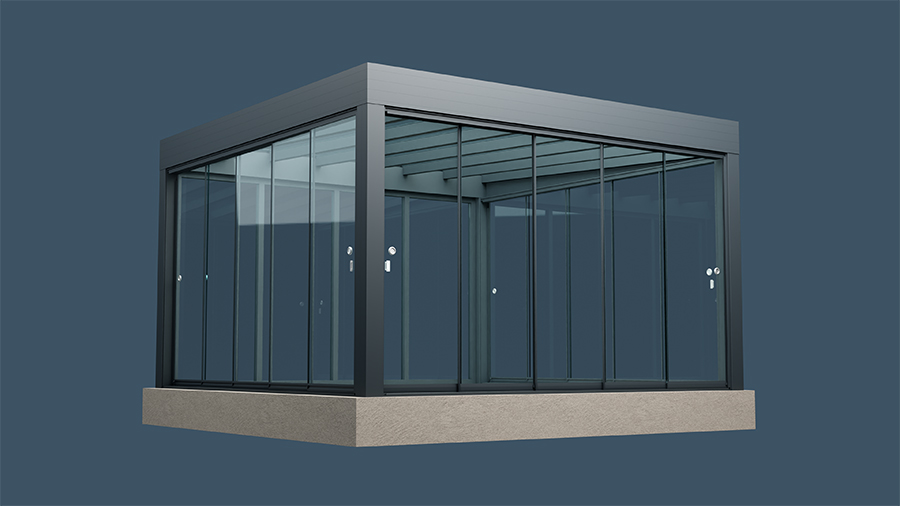

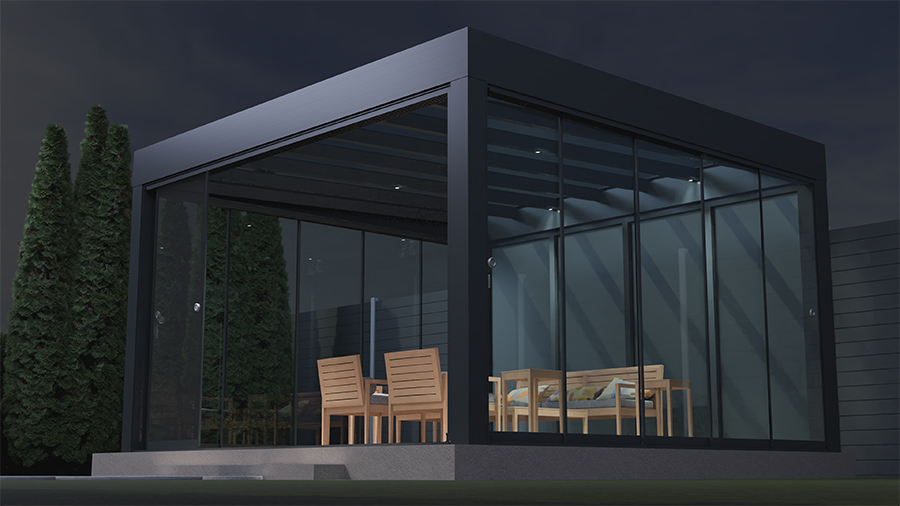

The Simplicity Free Mono is available with glass doors and fixed frames to create a fully enclosed Glass Room Upgrade.
This upgrade features clear glass walls and sliding glass doors which are lockable.
Find out more about the Glass Room Upgrade
Simplicity Free Mono Standard Textured Colours
System Specs |
|
|---|---|
| Max Projection: | 4m |
| Max Span Between Posts: | 4m |
| Minimum Pitch: | Fixed |
| Maximum Pitch: | Fixed |
| Roof Panel Type: | 6mm Toughened Glass |
| Max Gap Between Roof Bars: | 600mm |
| Lighting Option: | LED Spot Lights |
| Upgrades Available: | Glass Room, Glass Doors, Lighting, Heaters |
| Colour: | RAL 7016 Anthracite Grey Textured |
| Drainage: | Internal, within post |
Information on the design load and maximum span limits is available on request.
These are general calculations. Please refer to the SNOW & WIND Calculation table for each system to determine the requirements for each Canopy/Carport and Veranda sold.
Simplicity Free Mono FAQs
The Simplicity Free Mono is a premium aluminium veranda and glass room system with a flat-roof appearance. It is designed for modern outdoor living areas, garden rooms, carports and commercial canopies where contemporary styling is key.
Unlike traditional lean-to verandas, the Simplicity Free Mono has a hidden roof pitch that delivers the look of a flat roof while maintaining essential water drainage. It also uses a freestanding frame, so it can be installed without connecting to a building.
The Simplicity Free Mono can be installed as either a wall-mounted or freestanding structure. This flexibility makes it ideal for a wide range of applications, whether you’re attaching it to an existing building or positioning it independently in open space.
While both systems share the same flat-roof visual aesthetic and freestanding design, the Mono features a single-pitch (mono-pitched) roof hidden within the ring beam. The Apex version has a dual-pitched roof, offering a symmetrical ridge appearance for larger or more traditional spaces.
The Simplicity Free Mono offers a maximum projection of up to 4 metres and allows up to 4 metres between front posts, making it suitable for spacious, open-plan installations.
The system is glazed with 6mm toughened glass panels as standard. The hidden pitch ensures effective water run-off while retaining a crisp, flat-roof look from every angle.
Yes, it is ideal for creating enclosed garden rooms or luxury outdoor spaces. By adding glass sliding doors and fixed glass side frames, it can be transformed into a fully usable space throughout the year.
It is supplied in RAL 7016 Anthracite Grey (Textured) as standard, with optional upgrades to RAL 9005 Jet Black, RAL 9016 Traffic White or any bespoke RAL colour at additional cost.
The Simplicity Free Mono is compatible with a range of upgrades including LED spotlights, Solar Control Glazing, Glass Sliding Doors, Privacy Screens, Infrared heaters, Manual Pleated Under Blinds and more.
Yes, it’s freestanding design and architectural appeal make it an excellent choice for commercial uses such as hospitality terraces, covered walkways, smoking shelters and retail seating areas.
In many domestic cases, planning permission may not be required, especially for open verandas. However, due to its structural scale, we recommend checking with the local planning authority before installation.
Yes, each post requires a 600x600x600mm concrete pad foundation to ensure stability and proper drainage. This should be factored into the project planning stage.
