Pleated Under Blind
Manual Pleated Under Blinds are the ideal way to add comfort, style, and practicality to any of our outdoor living structures. Designed to reduce glare and limit heat build-up, they provide a smart, low-maintenance shading solution that enhances the overall experience for end users.
Whether you’re supplying verandas, canopies, carports or glass rooms, these blinds help you offer greater year-round usability while adding value to your installations. Simple to install and available across all our systems with a maximum 4m projection.
Discreet, Functional and Easy to Operate
These pleated blinds are a subtle yet effective addition to any roofed outdoor space. With a clean, flush-fitting design, they maintain the sleek appearance of your structure while adding an extra layer of comfort.
Manually operated using a supplied extension rod, they allow users to adjust light levels quickly and easily throughout the day – no wiring or power supply required. It’s a hassle-free way to offer flexible shading and enhance the liveability of your installations.
Key Features
Key Benefits
Simple Installation and Long-Term Performance
Supplied with all necessary fixings, each kit includes the pleated blinds, bracket clips, screws, extension rod and the supporting wall bracket, and protective gloves for safe handling during installation. A full installation guide and video are available through the Trade Partner area of our website.
Fabric Colour Options
UV Protection
| Fabric Colour (Light Filtering) | Tuv (UV Transmittance) | UV Blocked |
|---|---|---|
| White (7720) | 17% | 83% |
| Cream (7721) | 16% | 84% |
| Grey (772-04) | 7% | 93% |
| Light Grey (7728) | 10% | 90% |
| Black (7727) | 3% | 97% |
| Fabric Colour (Blackout) | Tuv (UV Transmittance) | UV Blocked |
|---|---|---|
| White (7750) | 0% | 100% |
| Cream (7751) | 0% | 100% |
| Grey (775-02) | 0% | 100% |
| Light Grey (7758) | 0% | 100% |
| Black (7757) | 0% | 100% |
Top 5 FAQs about Manual Pleated Under Blinds
1. Which Systems are compatible?
They can be installed on Simplicity 6, Simplicity 16, Simplicity 35, Xtra, Free Mono, Free Apex and Alfresco systems.
2. What is the maximum projection supported?
They are suitable for systems up to 4 metres projection.
3. Are they suitable for retrofitting to existing installations?
Yes – the blinds can be added to new or existing systems, offering a quick and easy upgrade for clients who want better shading without a full redesign.
4. What’s the difference between light-filtering and blackout fabrics?
Light-filtering fabrics soften sunlight while maintaining natural brightness – great for daytime use. Blackout fabrics completely block light, providing maximum shade and privacy for south-facing or high-glare areas.
5. How are they installed?
Each blind set is secured to roof bars with brackets. For certain systems (e.g. Simplicity 35, Xtra, Free Mono/Apex, Alfresco), angle trim is required along the roof bars to ensure a seamless, professional finish.

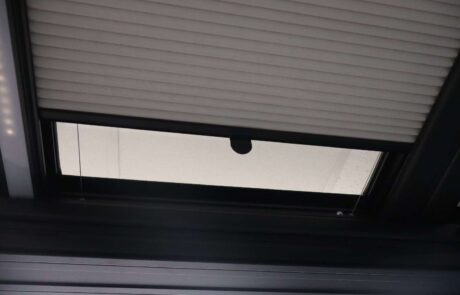

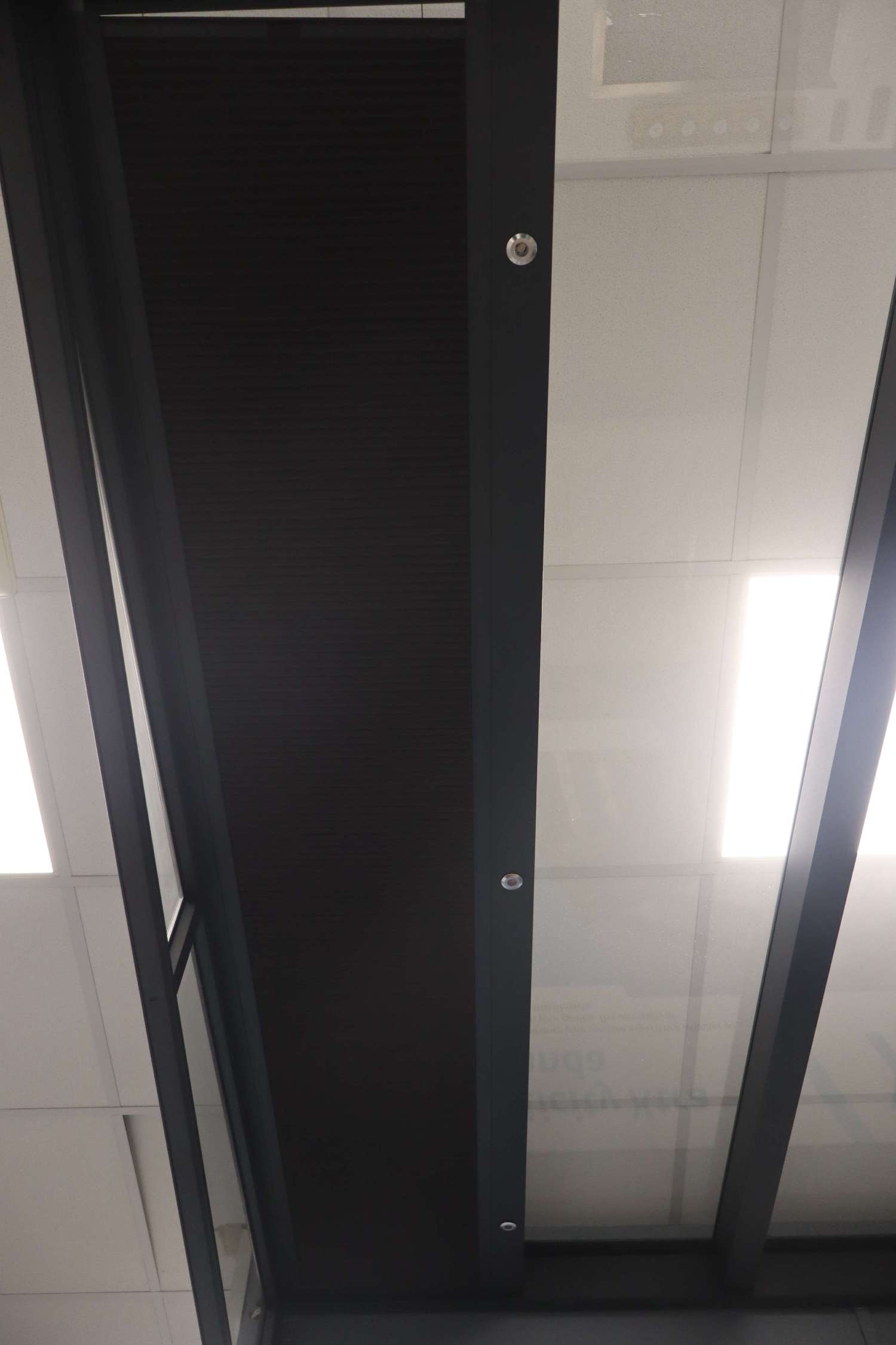

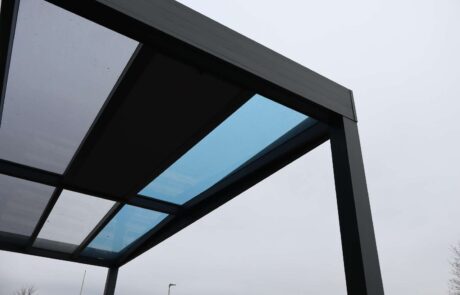

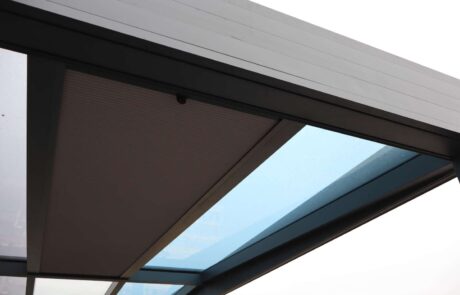

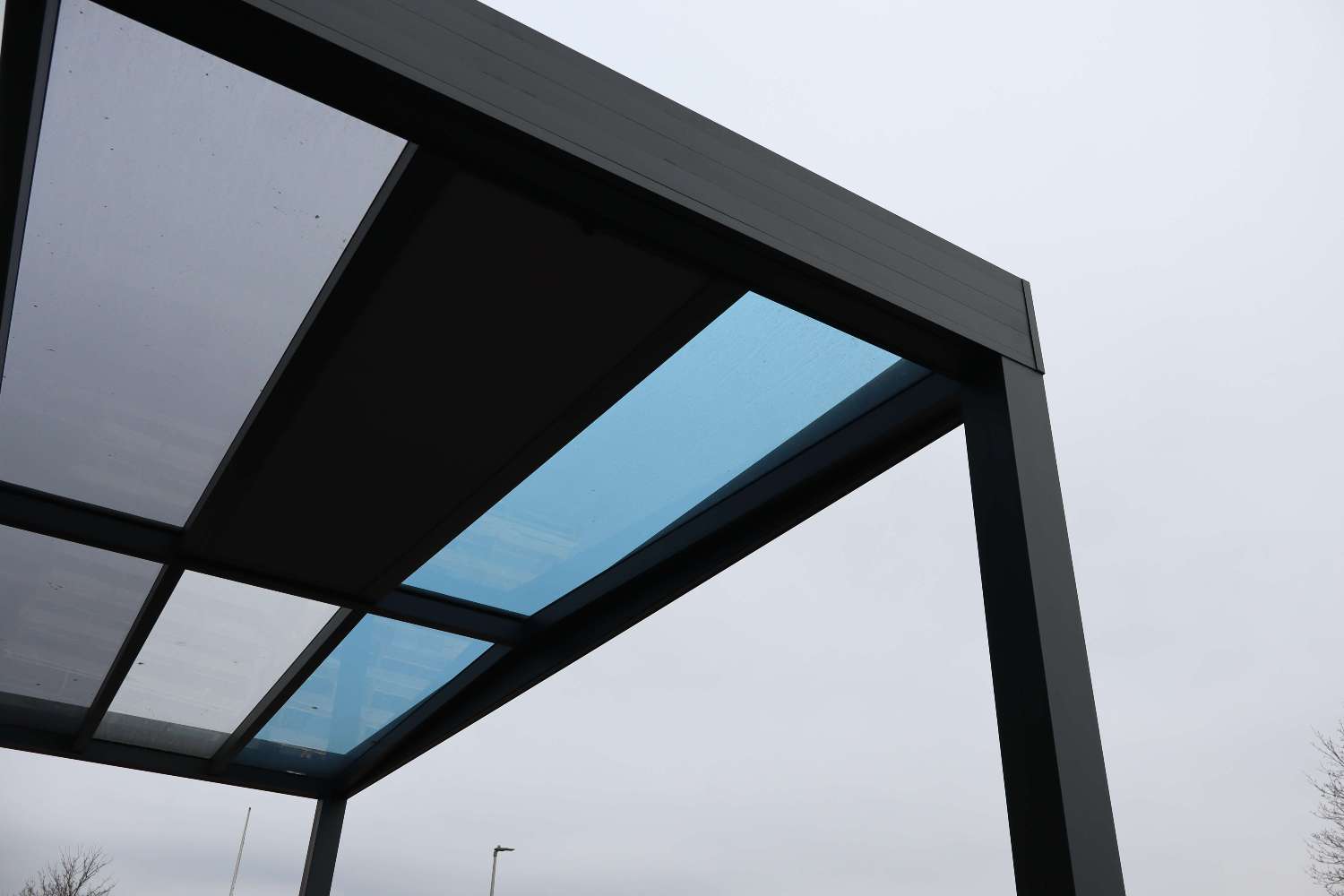

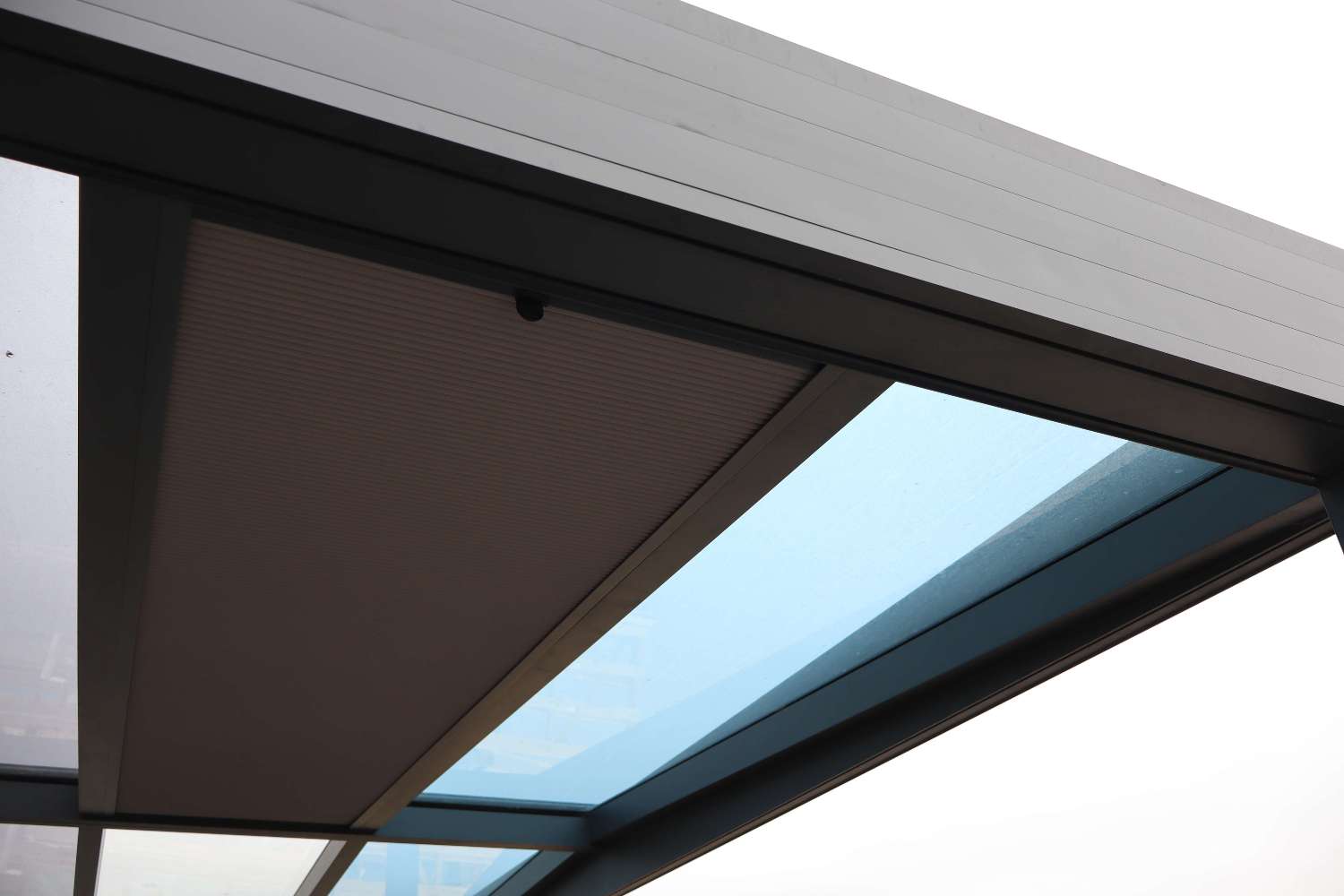

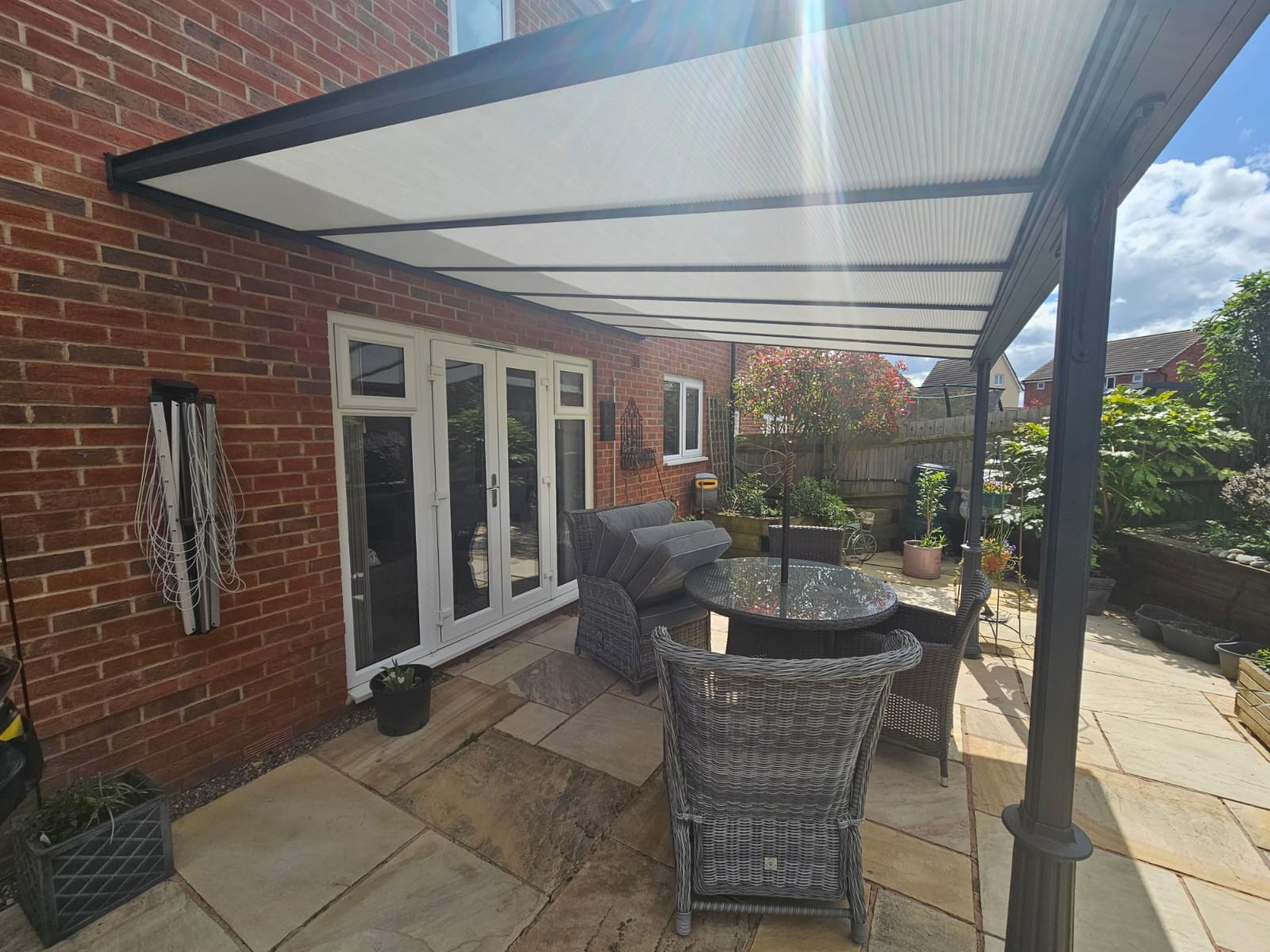

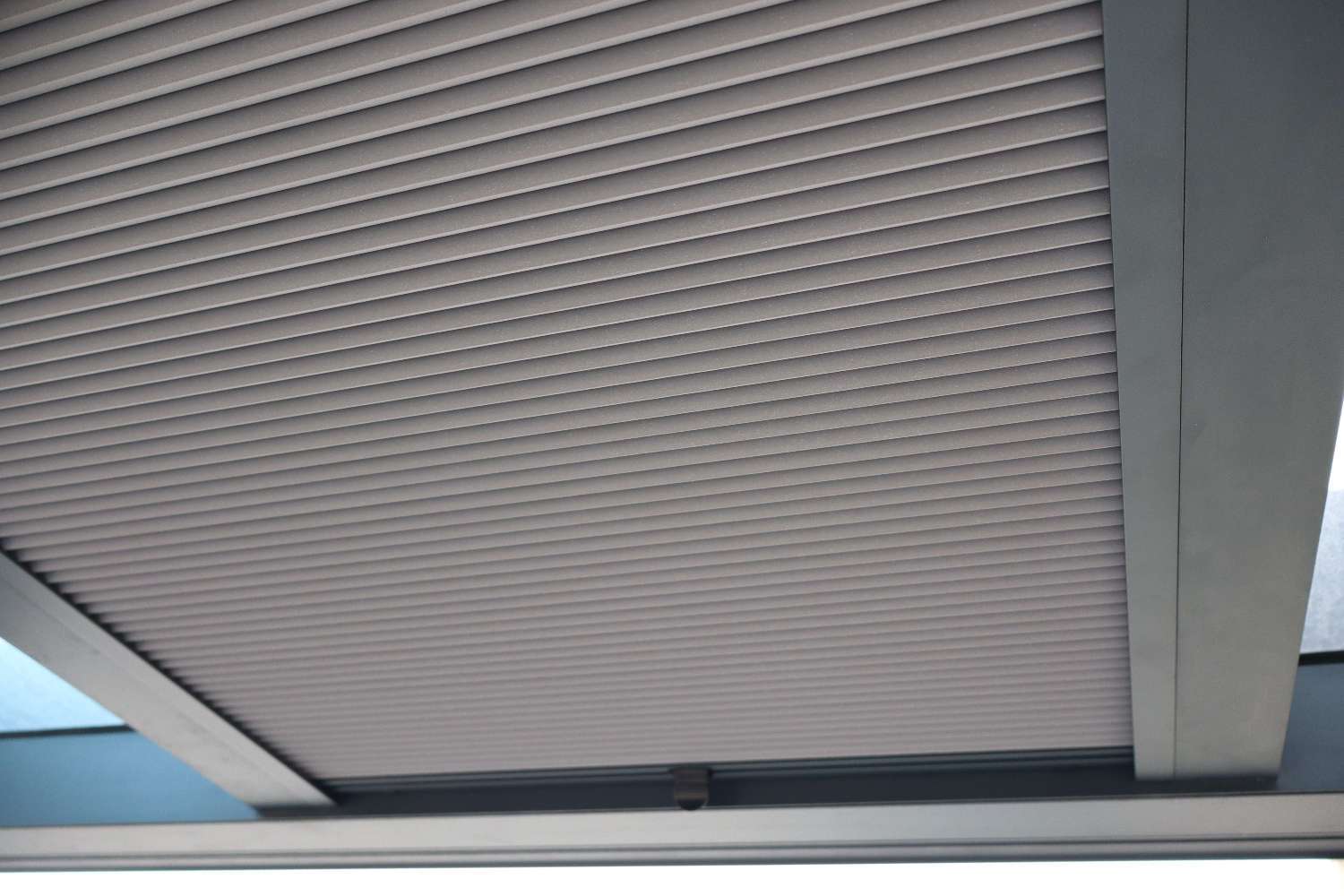

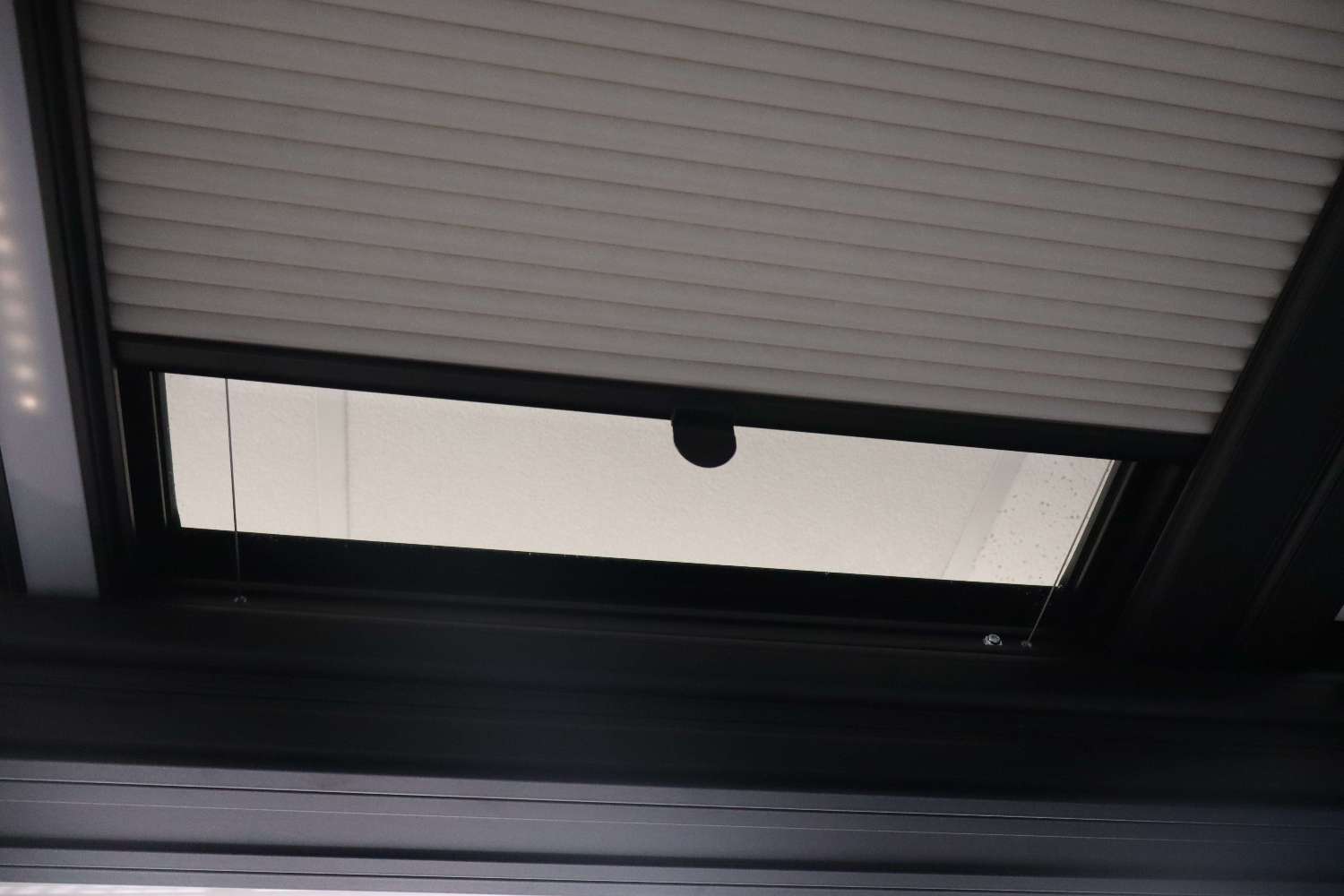

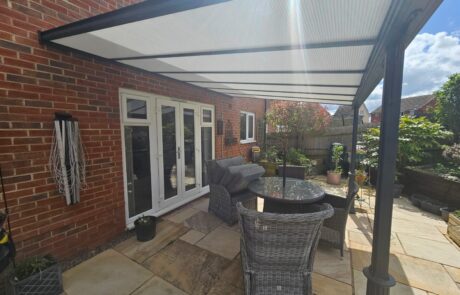

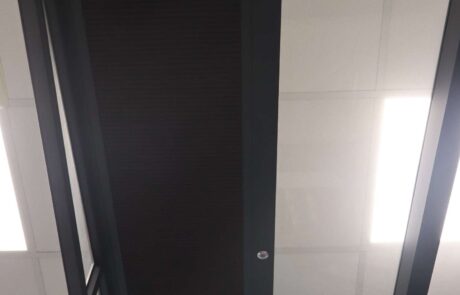

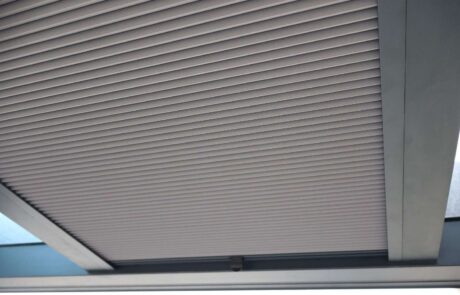

Pleated Under Blind Gallery
Speak to Our Team
We’re here to support you with technical guidance, marketing assets, and installation advice to help you win more business.
Speak to our team today to discuss trade pricing, lead times, and how you can incorporate shading into your veranda, canopy, carport, or glass room projects. Call us on 0333 305 5272 or email [email protected].

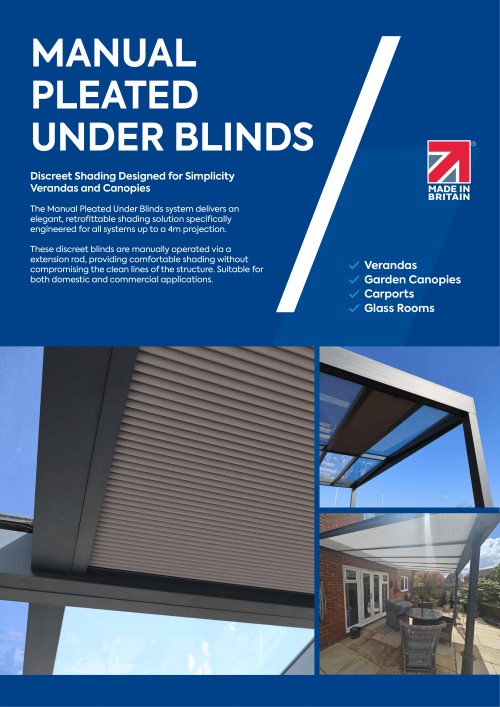

Spec Sheet
